Install a Freestanding Tub Faucet Guide

Welcome! You’ve landed on a clear, in-depth guide to installing a freestanding tub faucet. I think you’ll find it super helpful, whether you’re a DIY beginner or brushing up your skills. This isn’t just about water flow—it’s about creating a stunning bathroom centerpiece that works flawlessly. A bad installation can mean leaks or a ruined look, so this guide is here to help you nail it.

Here’s why it matters: a freestanding tub faucet adds luxury and function, but it needs careful planning to avoid costly fixes. I’ll walk you through choosing the right faucet, prepping your space, installing like a pro, and fixing any hiccups. Let’s dive in!

Table of Content

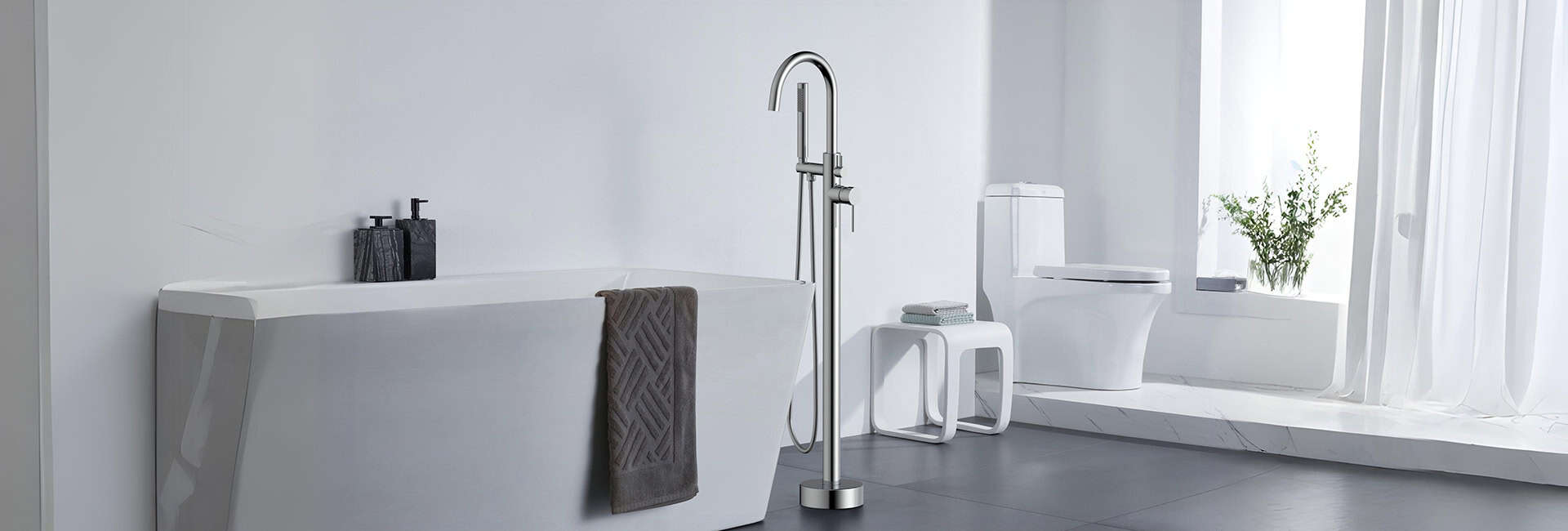

So, what’s the deal with freestanding tub faucets? As I know, they’re one of the most popular choices for modern bathrooms. These faucets stand on their own next to your tub, unlike wall-mounted or deck-mounted options. I love how they give off a sleek, minimalist vibe—perfect if you’re aiming for a high-end look.

• Style Points: They create a clean, open feel, especially in larger bathrooms.
• Placement Freedom: You decide where it goes based on your tub and layout.
• Simpler Setup: Compared to wall-mounted faucets, they usually don’t need you to tear into walls for plumbing.

Before you touch a single tool, let’s make sure you’re set up for success. I think preparation is half the battle here—it saves you time and keeps frustration at bay.

Here’s your checklist:

• Pipe cutter (for trimming supply lines)
• Adjustable wrench (to tighten fittings)
• Plumber’s tape (a must for leak-proof connections)
• Screwdriver set (for mounting hardware)
• Level (to keep things straight)
• Measuring tape (for accurate placement)
• The faucet kit (comes with the base, supply lines, and hardware)
• Safety gear like gloves and glasses (better safe than sorry)

Choosing the right faucet isn’t just about looks—it’s about fit too. Here’s what to consider:

• Tub Size: Measure your tub’s height and depth. The faucet should sit about 5-6 inches above the rim for a smooth flow.
• Bathroom Vibe: Match the finish—chrome, matte black, or brushed nickel—to your decor.
• Price Range: Faucets can cost anywhere from $200 to $2,000. Invest in quality, but don’t overspend on features you won’t use.

• What to do:
  • Turn off the main water valve to your home.
  • If you’re lucky to have bathroom shut-offs, close them too.
  • Open a nearby faucet (like your sink) to drain residual water in the lines.
• Why it matters:
  You must relieve water pressure. Even a few drops can make a mess or damage new fittings.

• Key distances:
  • Distance from tub: 6–8 inches from the edge of the tub rim to the faucet base.
  • Faucet height: Usually 33–38 inches tall; make sure your spout can clear the rim and reach comfortably inside the tub.
• How to mark:
  • Place the tub where it will stay.
  • Mark the center of the faucet body so it aligns with the tub spout.
  • Trace around the mounting plate.
• Pro Tip:
  Place cardboard or a drop cloth under the faucet area to protect your floor during marking and drilling.

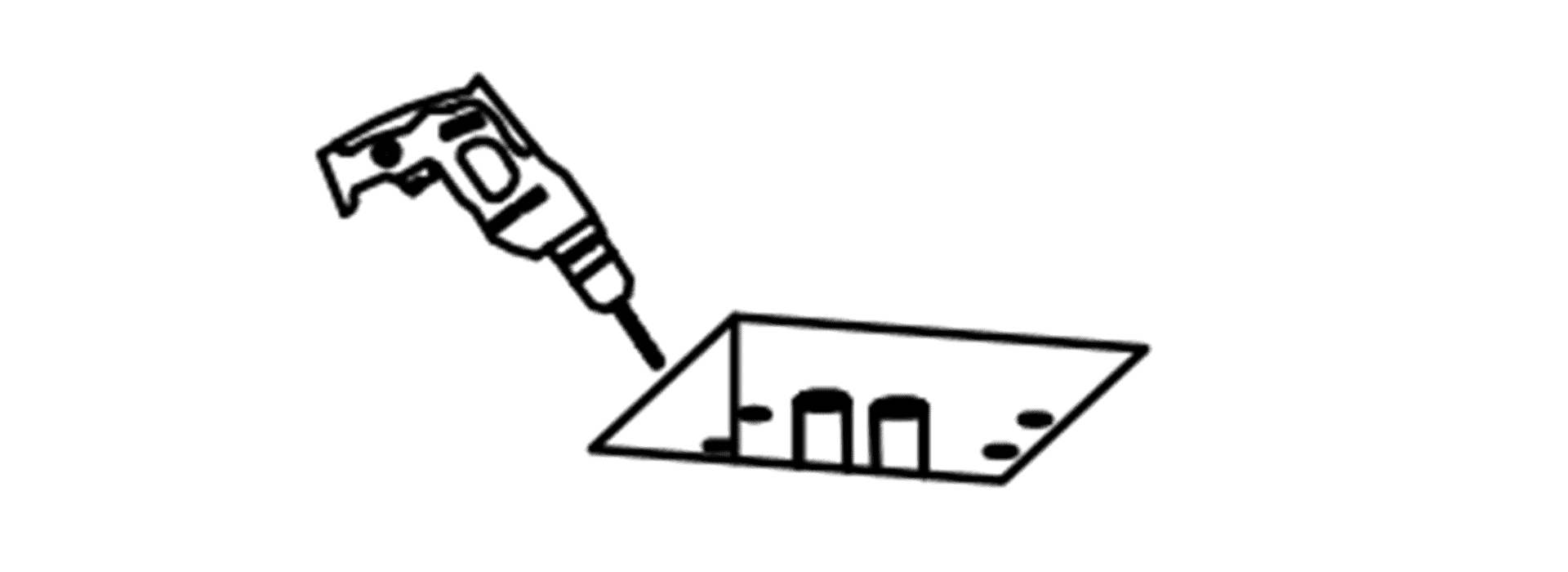

• If there’s no rough-in yet:
  • Mark a 7″x7″ square or per the faucet’s rough-in size.
  • Use a stud finder to avoid floor joists.
  • Drill a pilot hole in each corner, then use a jigsaw to cut the full square.
• Support block:
  • If there’s no framing under the hole, insert a 2×6 wood block below the surface.
  • Use construction adhesive + screws from below to create a secure anchor point.

On Concrete Floors?
You’ll need a core drill to create a plumbing hole. Hire a pro unless you’re very experienced with concrete.

• Your faucet will include either:
  • A rough-in valve box
  • A mounting bracket or base plate
• Install process:
  • Place the box/bracket in the hole.
  • Align it with your centerline and make sure it’s level.
  • Secure the bracket to the support block using 3″ deck screws.
  • Dry-fit your faucet over it to check the alignment.

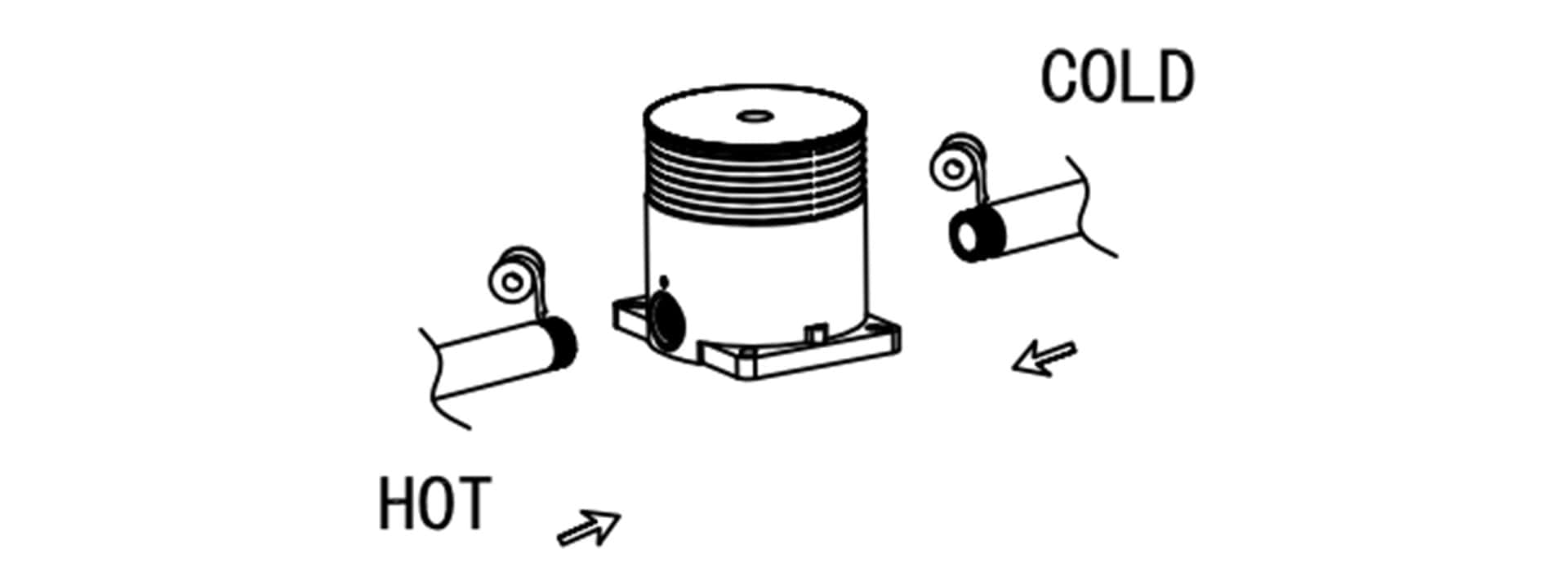

• Plumbing options:
  • Use 1/2” or 3/4” PEX, copper, or CPVC depending on local code.
  • Insert the hot and cold lines through the floor, centered in the bracket.
• Leave approx. 2–3 inches of pipe above the floor for connection.

IMPORTANT:
Use drop-ear elbows under the floor if your faucet uses threaded nipples, or flexible hoses if it uses compression fittings.

• Do this before mounting the faucet body:
  • Wrap male threads with Teflon tape (2–3 layers clockwise).
  • Attach the faucet’s hot/cold hoses to your lines. Match red to hot, blue to cold.
  • Hand-tighten first, then use a wrench to make snug.
• Don’t over-tighten! That’s how brass or copper threads get stripped.
• Optional but recommended:
  Install shut-off valves under the floor so future repairs are easier.

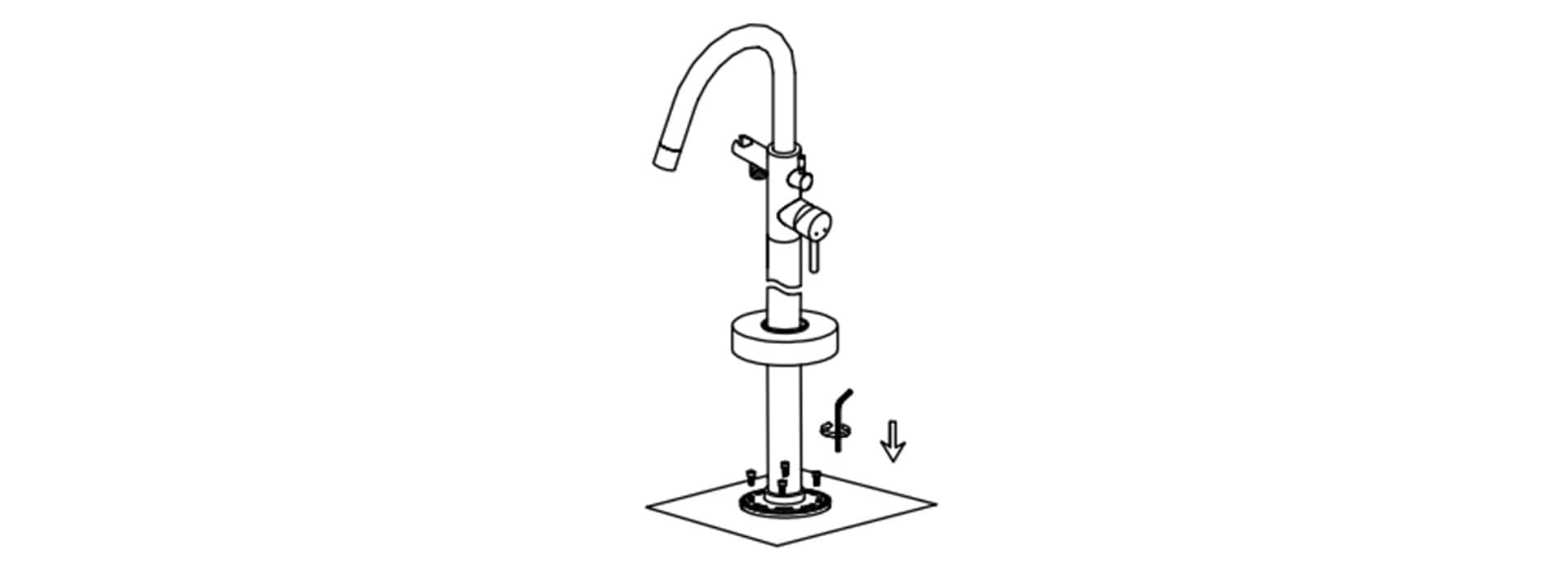

• Slide the faucet column over the mounted base or valve box.
• Align it carefully—double-check the spout direction.
• Use a hex key (Allen wrench) to tighten the set screws into the mounting bracket.
• Make sure the faucet is level side-to-side and front-to-back.

Stability tip:
If the faucet rocks slightly, insert a rubber shim or gasket between base and floor.

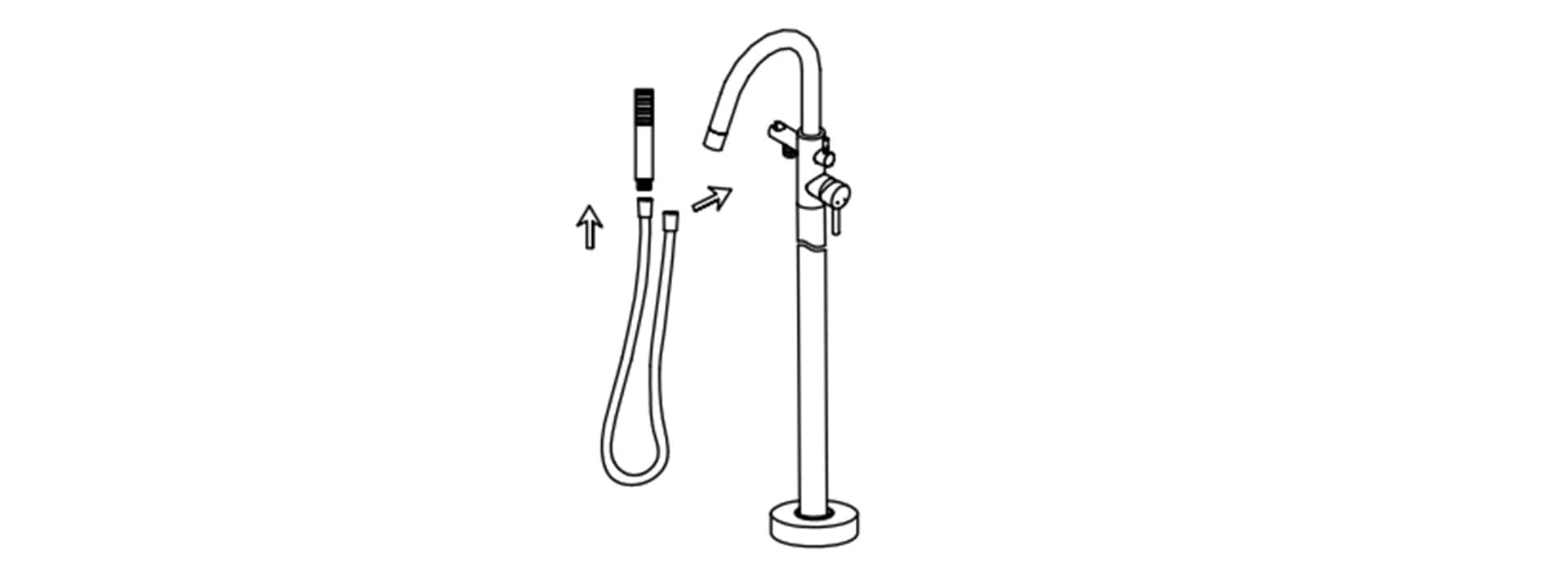

• Wrap Teflon tape around the hand shower hose threads.
• Screw the hose into the faucet outlet.
• Connect the wand and place it in the holder.

Test pull-out length and check flexibility before final tightening.

• Slowly turn on the water valves or main supply.
• Open the faucet handles—run hot and cold for 30 seconds.
• Inspect:
  • Hose connections
  • Base joints
  • Underfloor access (use flashlight)
• If you see a drip:
  • Turn water off.
  • Re-tighten.
  • Reapply Teflon tape if needed.

• Run a thin bead of 100% silicone caulk around the faucet base.
• Smooth with a damp finger or caulking tool.
• Let cure for 24 hours before using the tub.

Even with a solid plan, things can go off track. Here’s how to fix the most common issues I’ve seen:

• Leaks: If water’s sneaking out, check your connections. Tighten them gently. Still leaking? Take it apart, reapply plumber’s tape, and try again.
• Weak Water Flow: Look at the supply lines—any kinks or clogs? Also, unscrew the aerator (that little cap on the spout) and clean out any gunk.
• Wobbly Faucet: If it’s rocking, the base isn’t secure. Tighten the screws or add extra support under the floor.

For trickier problems, peek at Plumbing Forums» — real plumbers share fixes there.

Your faucet’s installed—awesome! Now, let’s keep it shining and working like new.

• Clean It Right: Use mild soap and water with a soft cloth. Skip the harsh stuff like bleach—it’ll ruin the finish.
• Spot Leaks Early: Check the base and connections every few months. A quick fix now beats a big repair later.
• Cold Weather Tip: If your bathroom gets chilly, insulate the pipes to avoid freezing.

A little TLC goes a long way. Your faucet will thank you with years of flawless performance.

You’ve just mastered installing a freestanding tub faucet—give yourself a pat on the back! I think you’ll love how it elevates your bathroom’s style and function. If you haven’t picked a faucet yet, check out Luxuryhome’s freestanding tub faucets». They come with clear, easy-to-follow instructions and a limited lifetime warranty, so you’re covered for the long haul.Enjoy your stunning new bathroom!
